Icom


 Icom - A Leader in Land Mobile Communications

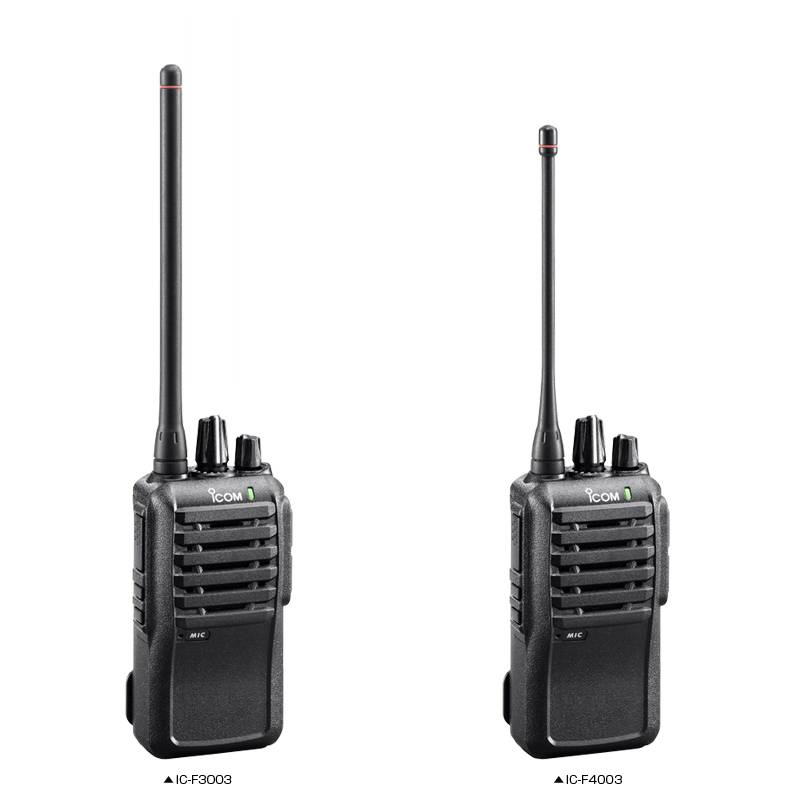

Icom IC-F3003 VHF / IC-F4003 UHF Weather Resistant Handheld Transceiver

  Icom IC-F3003, F4003 Handheld

Freq. coverage:



RF Output Power:


Channels:


Mode:


Remarks
  :

IC-F3003 VHF Handheld - 136 ~ 174 MHz
IC-F4003 UHF Handheld - 400 ~ 470 MHz
                                         450 ~ 520 MHz

IC-F3003  User selectable - 1, 2 & 5 Watt RF
IC-F4003  User selectable - 1, 2 & 4 Watt RF

16  (Spacing 12.5 & 25 KHz)

BIIS & MDC PTT ID,
Digital QT / DTMF,
2-Tone, 5-Tone

Weather resistant & dust protected.
Loud receive audio for noisy enviroments.
Time-Out-Timer;
Low battery alert;
Voice Operated Transmitter (VOX) for handfree operation.

Supplied with BP-264 NIMH battery 1400mAh and BC-192 regular desktop charger
, Rubber duck Antenna.

 Icom IC-F3003, F4003 Brochure
Brochure


Icom IC-F3000, F4000 Series Instruction Manual
Instruction Manual




VHF - POR
UHF - POR

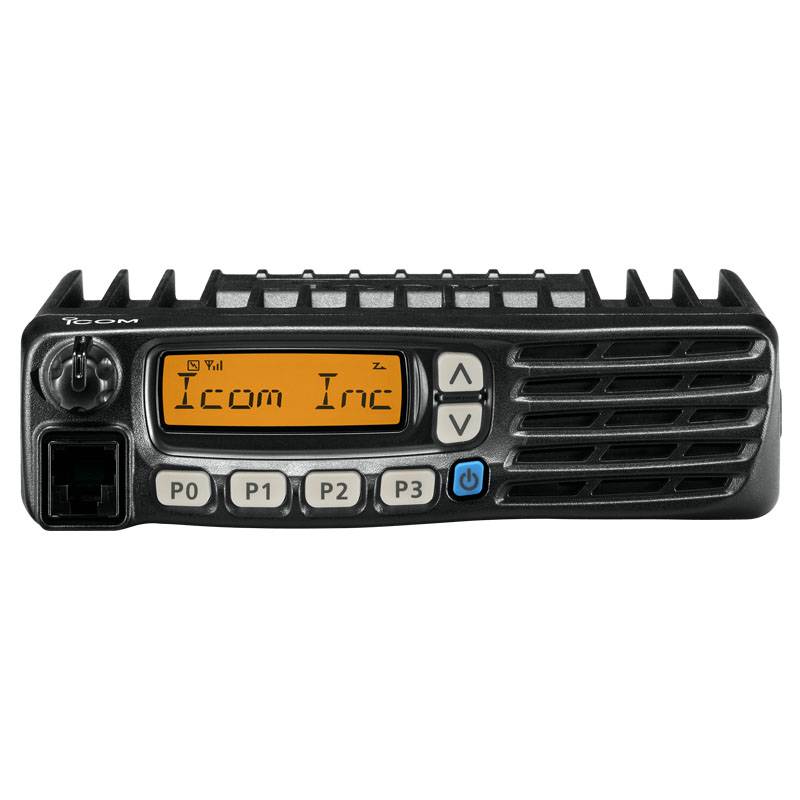

Icom IC-F5022 VHF / IC-F6022 UHF Analog MobileTransceiver

Icom IC-F5022, F6022 Mobile Transceiver

Main Features

Affordable Analog Mobile Radio.
Available in both VHF and UHF models



Icom IC-F5022, F6022 Brochure
Brochure



Icom IC-F5022, F6022 Instruction Manual
Instruction Manual


VHF - R4195.00

UHF - POR

Freq. coverage:


RF Output Power:

Channels:


Mode:


Remarks
  :


IC-F5022 VHF Mobile - 136 ~ 174 MHz
IC-F6022 UHF Mobile - 400 ~ 470 MHz

User selectable - 25, 10 & 2.5 Watt RF

128; 8 Banks  (Spacing 12.5, 20 & 25 KHz)

BIIS & MDC PTT ID, Digital QT / DTMF,
2-Tone & 5-Tone

Front mounted speaker.
Radio kill, stun and revive.
6 programmable buttons.
Lone worker function;
Time-out-timer,
Lock-out penalty timer;
Optional Voice Scrambler
Compatible with IC-F3022/F4022 series handheld

Antenna  and installation not included




Please note:  A valid radio license is required to purchase two-way radio transceivers.
However, a license is not required when buying license-free radios.

Icasa Radio License Application Forms download link
